Name: For LS Intake Manifold Compatible with LS1 LS2 LS6 of cathedral port heads with - Lonestar Eagle Supply LLC
Price: 384.99 USD
Availability: InStock

For LS Intake Manifold Compatible with LS1 LS2 LS6 of cathedral port heads with

$384.99

2 People watching this product now!

Description

Product Description

5-1/2" Runners, 3/4" Fuel Rails, CNC Machined, Rectangle Ports, Braided Fuel Rail, Drive by Cable. [Throttle Body] Drive by cable, Idle air control (IAC) and throttle position sensor (TPS) installed. Fuel rail, Fuel line, Bracket, Seal gasket, Vacuum plug, Adapter with o-ring, Bolt, Nut, Washer.

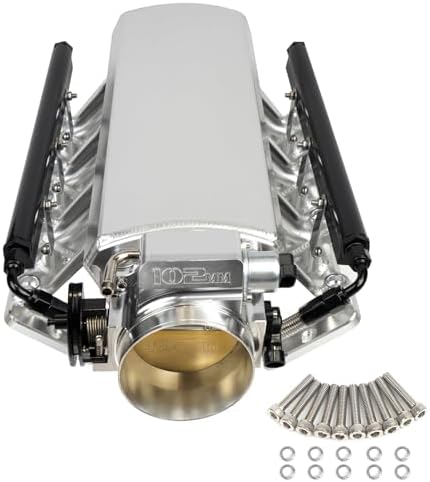

1 Overall Composition

2 Throttle Body Composition

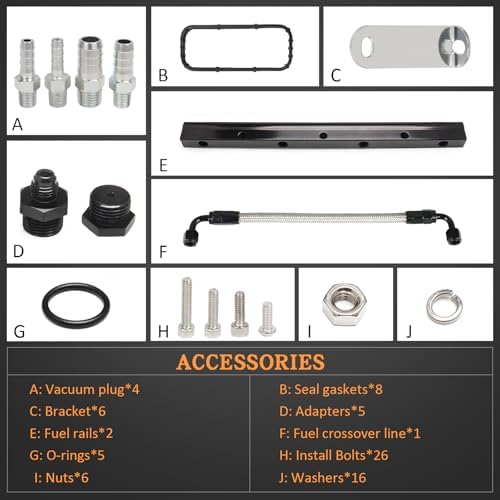

3 Accessories Composition

Bore Size-Back: 3.62" Flow Rate: 1218 CFM Working pressure: 85 PSI Burst pressure: 245 PSI

Throttle Body Parameter

Drive by cable

Bore Size-Back: 4.02″

Flow Rate: 1218 CFM

Working pressure: 85 PSI

Burst pressure: 245 PSI

Compatible with LS1/LS2/LS6 Original Engine or LS-Based Engines with Cathedral Port Heads Shape;

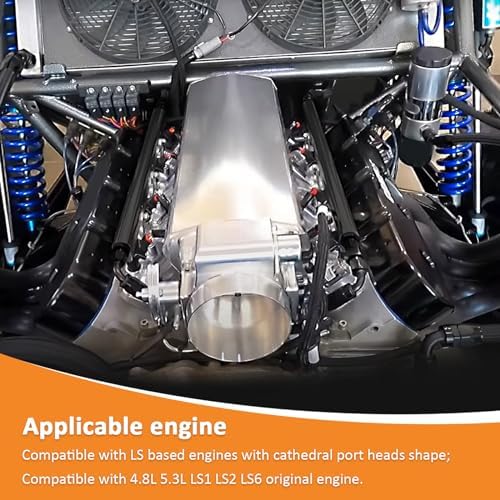

Applicable Engine

Compatible with LS1, LS2, LS6 Original Engine.

Compatible with Chevrolet Small Block V8 GEN III/IV LS Based Engines with Cathedral Port Heads Shape:

4.8L / 293 CI (For LR4); 5.3L / 325 CI (For L33,L59,LM4,LM7); 5.7L / 346 CI（For LS1,LS6); 6.0L / 364 CI（For LQ4,LQ9,LS2).

Some Models: For LS 4 bolt intake with cable drive only, not for drive by wire.

Models: Compatible with Chevrolet Corvette 1997-2004, Z06 2001-2004 Models: Compatible with Pontiac Firebird Formula, Trans AM 1998-2002 Models: Compatible with Corvette Z06 2001-2004 Models: Compatible with Cadillac CTS V-series 2004-2005 Models: Compatible with Chevrolet Corvette 2005-2007 Models: Compatible with Chevrolet SSR 2005-2006 Models: Compatible with Chevrolet TrailBlazer SS 2006-2009 Models: Compatible with Cadillac CTS V-Series 2006-2007 Models: Compatible with Pontiac GTO 2005-2006 Models: Compatible with Saab 9-7X Aero 2008-2009

[Applicable Engine] Compatible with LS based engines with cathedral port heads shape; Compatible with 4.8L 5.3L LS1 LS2 LS6 original engine. For LS 4 bolt intake with cable drive only, not for drive by wire.
[Some Models] Compatible with Chevy Corvette 97-07 | Corvette Z06 01-04 | SSR 05-06 | TrailBlazer SS 06-09 | Cadillac CTS V-series 04-07 | Pontiac Firebird Formula Trans AM 98-02 | Pontiac GTO 05-06 | Saab 9-7X Aero 08-09.

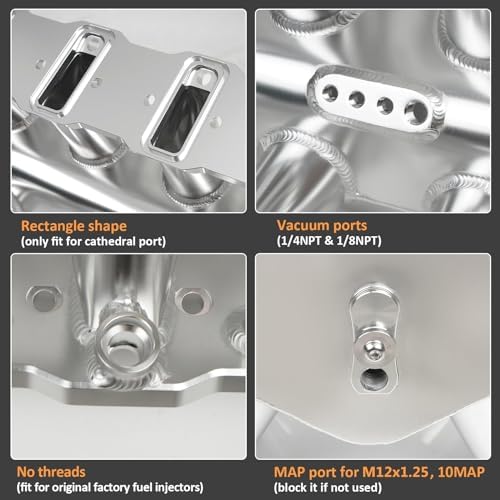

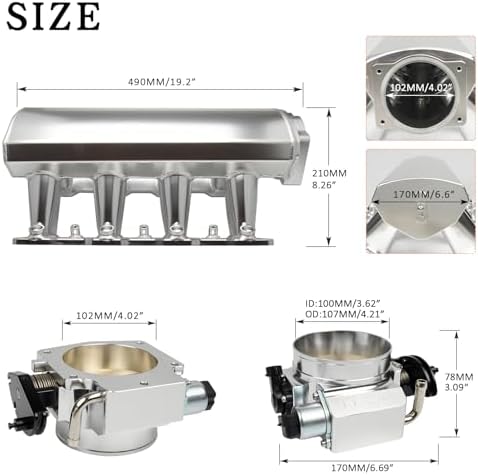

[Size] 102mm/4.02″ inlet with 210mm height (taller); 1/8″ thick T6061 aluminum; vacuum ports (1/4NPT & 1/8NPT) with plug; rear M12 x 1.25 MAP port for 10 MAP.

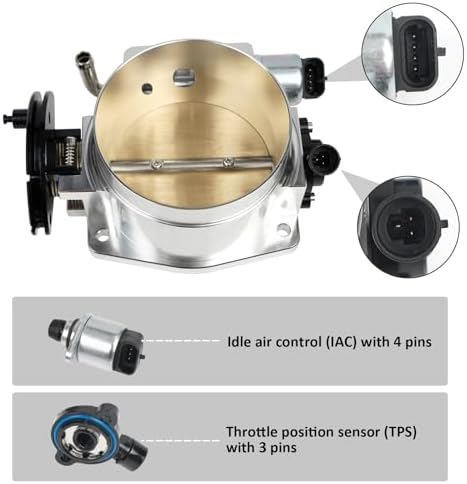

[Throttle Body] Drive by cable, Idle a-ir control (IAC) and throttle position sensor (TPS) installed. Flow Rate: 1218 CFM, Working pressure: 85 PSI, Burst pressure: 245 PSI.
[Note] Fits original factory fuel injectors for LS1 and LS6, but different spacers may be required for LS2.
